Concrete Block Retaining Walls
Core-filled besser block on a reinforced footing. Our strongest option for tall or heavily loaded walls, and the system engineers most often specify where a wall carries genuine structural weight.
Newcastle Concrete Services

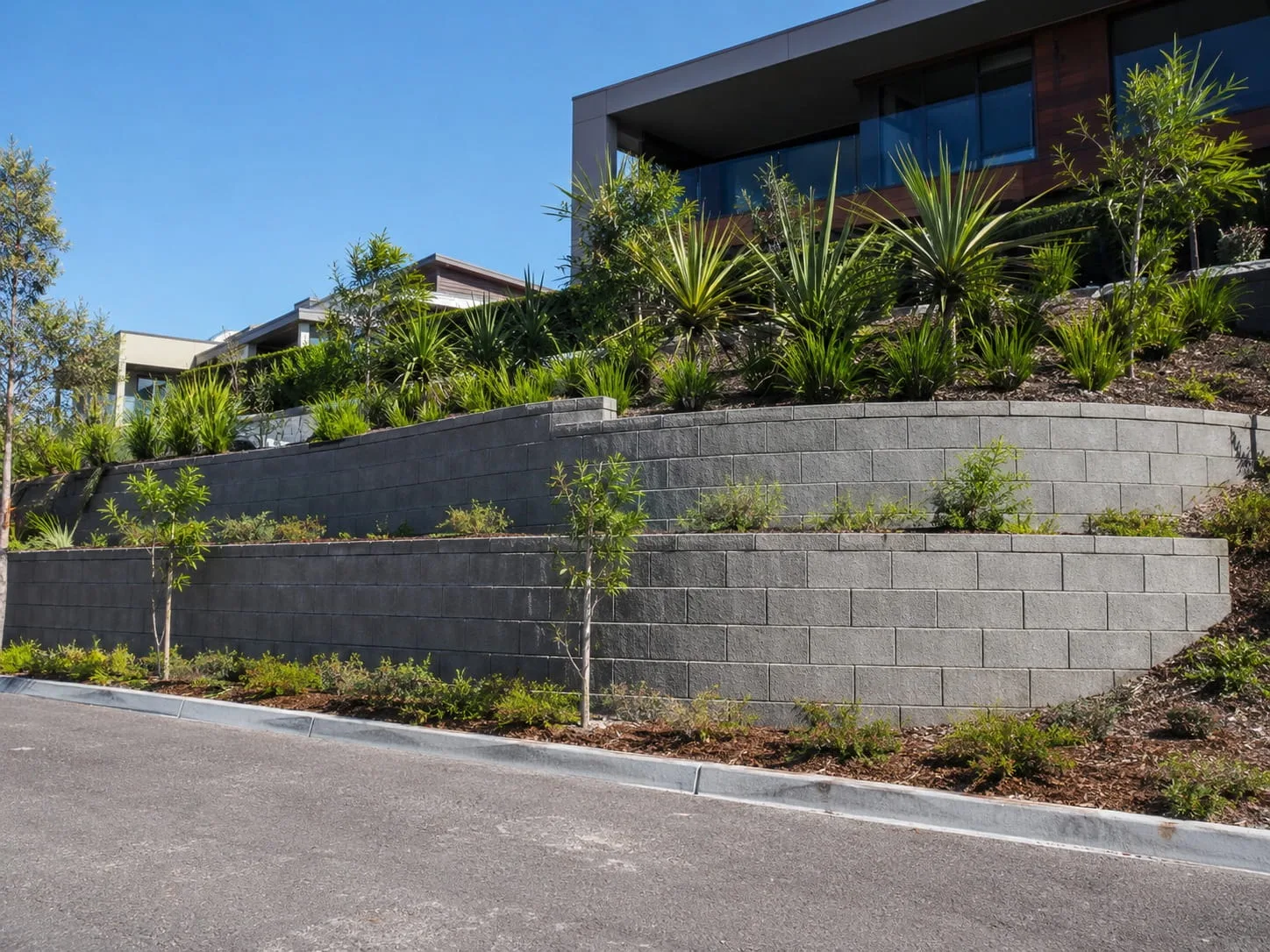

Newcastle Retaining Walls
Retaining walls and concrete fencing built to hold the slope, drain properly and suit the boundary you are working with.
Project Overview
Retaining Walls Newcastle
Retaining walls and concrete fencing built to hold the slope, drain properly and suit the boundary you are working with.
Newcastle is a hilly city, and retaining walls do a great deal of the quiet structural work holding its backyards in place. Our retaining walls Newcastle crews design and build walls suited to your slope, soil conditions and drainage requirements rather than applying the same detail to every site.
We handle everything from garden terracing through to structural walls holding a driveway cut or supporting a building platform. Engineering input, drainage design and material selection are built into every project, because a wall that cannot drain is a wall carrying far more load than it was ever designed for.
Steep block, an erosion problem or a plan to create usable flat space where there currently is none — a well-built retaining wall solves it and looks like part of the property rather than an intervention.
What We Build
Our Retaining Wall Services in Newcastle
A retaining wall has one job: hold ground that wants to move. Everything else — the system, the look, the cost — sits on top of that. So we start by working out what the wall actually has to hold, including height, the slope behind it, whether anything is loading it from above such as a driveway or pool, and where the water is going to go. Only then does the choice of system mean anything.
Drainage is what most failed walls have in common. Behind every wall we build there is drainage aggregate, geofabric and an agricultural pipe running to a proper outlet, because in a city that regularly takes 100mm of rain in a day, a wall holding saturated soil is carrying a load nobody designed for. Below are the systems we build most often across Newcastle and Lake Macquarie.
Concrete Sleeper Retaining Walls
Precast sleepers slotted between galvanised steel posts set in concrete. Quick to build, dependable, and comfortably the most popular choice for Newcastle backyards and driveway cuttings.
Concrete Fence
Precast concrete fence panels between posts, giving you a solid boundary that cuts noise and wind. Frequently built straight off a retaining wall so one structure handles both jobs.
Interlocking Retaining Wall Blocks
Dry-stacked blocks that lock together without mortar, stepping back slightly as they rise. Ideal for garden terraces, curved walls and planter beds where appearance carries as much weight as function.
Poured Reinforced Concrete Walls
Formed and poured on site as one continuous reinforced structure. The right answer for awkward shapes, tight boundaries and walls tying into an existing slab or footing.
Premium and Capped Wall Blocks
Decorative block ranges with textured faces and matching caps. For front-yard and feature walls that are visible from the street and need to look deliberate rather than purely functional.
Block Walls
Building Concrete Block Walls in Newcastle
A block wall starts underground, and that is where its strength comes from. We excavate and pour a reinforced footing sized for the wall it has to carry, with starter bars set into it at the correct spacing. Blocks are then laid over those bars, vertical reinforcement is tied in as the courses rise, and the cores are filled solid with concrete so the finished wall behaves as one reinforced structure rather than a stack of separate units.
Behind the wall the drainage layer gets built properly: aggregate wrapped in geofabric, an agricultural line at the base running to a sensible outlet, and weep holes through the wall where they belong. Across the Newcastle and Lake Macquarie hillsides this matters more than most homeowners expect, because a heavy storm can put an enormous volume of water into the ground behind a wall in a very short time.
Once the wall is up you have options for how it presents. Block can be left bagged, rendered and painted to match the house, or finished with a capping course along the top. Walls over roughly a metre, or any wall carrying a load such as a driveway or pool above it, generally need engineering and council approval, and in declared Mine Subsidence Districts there may be additional requirements. We will tell you what applies to your site before you commit to anything.
Sleeper Walls
Concrete Sleeper Retaining Walls in Newcastle
Sleeper walls are the workhorse of Newcastle retaining and the system we install most, particularly across the sloping blocks through Charlestown, Merewether Heights, Kotara South and the Lake Macquarie escarpment. The build is straightforward when it is done properly: we set out the line, bore post holes to the depth the wall height calls for, set galvanised steel H-posts in concrete, then slide precast sleepers down between the flanges course by course. Each sleeper sits captive in the posts, so the wall draws its strength from post embedment rather than mortar or stacking.
The details separate a good sleeper wall from a cheap one. Post spacing and hole depth need to follow the retained height rather than a habit measurement. Drainage aggregate and an ag line go in behind the sleepers before any backfill, and the backfill itself is compacted in layers instead of tipped in and levelled. We finish with capping sleepers where you want a cleaner top line.
You also get a genuine choice of appearance. Sleepers come in plain smooth faces, timber-look profiles and rock-face textures across a range of greys and earth tones, so the wall can either disappear into the garden or become a feature. Tell us the height you need to retain and what the space is used for, and we will size the system and give you a fixed price.
Sleeper Performance
Why Concrete Sleepers Suit This Climate
Concrete sleepers suit Newcastle for a simple reason: nothing in the system is edible or rottable. Timber sleepers here are living on borrowed time between ground moisture, humidity, termite pressure and months of damp through a wet autumn, and a treated timber wall that looked solid at handover can be soft at the base within a decade. Concrete and galvanised steel do not have that problem, so the wall you build now is the wall you still have in twenty years.
They also handle the weather. Concrete does not warp or twist as it dries out, it copes with saturated ground after a storm followed by a hot dry spell, and there is nothing in it for rot or termites to work on — which matters in a region with genuine termite pressure. Combined with proper drainage behind the wall, that adds up to a structure needing essentially no maintenance beyond an occasional hose down.
On cost, sleepers usually land between timber and a full core-filled block wall, which is a large part of the appeal. You get concrete durability at a mid-range price, the install is faster than block because there is no footing to cure and no rendering, and if you later want fencing along the top, the steel posts can often be extended to carry it.
Concrete Fencing
Benefits of Concrete Fencing
Concrete fencing solves problems a timber fence cannot. The most obvious is sound: a solid precast panel has real mass, so it cuts traffic and neighbour noise in a way palings never will. On busy roads, corner blocks and properties backing onto arterials or the rail line, that is usually why people look at it in the first place.
Maintenance is the other draw. There is nothing to rot, nothing for termites to eat, no palings working loose and no repainting every few years — a genuine consideration in a humid coastal climate that is hard on timber. Panels stand up to storm winds far better than a paling fence, they do not blow over in a southerly buster, and they hold their line rather than sagging along the run. Colours and textures are moulded through the panel, so what you see is the material itself.
Because concrete fencing sits on posts and footings, it pairs naturally with retaining. On a sloped boundary we can build the retaining portion and the fence as one continuous structure, which is tidier and usually cheaper than building a wall and then fencing above it separately. It adds privacy, security and a boundary line that reads as part of the house rather than an afterthought.
Premium Blocks
Premium Concrete Retaining Wall Blocks
Some walls are tucked away down the side of the house and some are the first thing anyone sees. Where a wall sits at the front, beside the driveway or along an entertaining area, it is part of how the property reads from the street, and plain grey block wastes that. Premium ranges bring textured and split-face faces, richer colours and matching caps that finish the top line properly.
They are worth the extra outlay in the right spot. A textured feature wall along a front boundary or a terraced garden bed lifts the whole streetscape, and because the colour runs through the block rather than sitting on it as paint, it holds up under coastal UV without needing to be recoated. Larger-format premium blocks also cover height quickly, which helps on the steeper sites.
We are happy to mix systems where that makes sense: premium blocks on the visible faces, a more economical sleeper or standard block wall where nobody sees it. That way the budget goes where it shows. Bring us the area and the look you are after and we will show you samples and price both options honestly.
Discuss retaining walls in Newcastle
Send us the suburb, rough dimensions, what is there now and the finish you have in mind, and we will come back with a proper price.
